FS 200-10 Contitech Convoluted Air Spring SP1B12 Phoenix Suspension Air Bags
Key Specifications
| Parameters | Details |
| Brand | GUOMAT |
| Model Number | 1B20010-G3/4-M8 |
| Interface Type | G3/4 thread + M8 bolt |
| Temperature range | -30°C to +70°C |
| Material | High-quality rubber + reinforced fiber layer + galvanized metal parts |
| Warranty | 1 Year |
| Keywords | Air Spring,Suspension Air Spring |
GUOMAT 1B20010 air spring is designed for harsh working conditions, providing excellent shock absorption and long life. It replaces the same model of Firestone and Contitech, with a 30% reduction in cost and 100% compatibility verification.
Precise adaptation: G3/4 threaded interface + M8 bolt, perfectly matching the original vehicle installation position.
Durable material: UV-resistant rubber + rust-proof metal parts, suitable for high load and humid environment.
Performance guarantee: XX certification (such as ISO 9001), pressure test report can be provided.
"Suitable for trucks, trailers, industrial equipment suspension systems, especially recommended for long-distance transportation and mining machinery, reducing bumps and losses and improving driving comfort.
This Part can Replace the Following Original Models
Firestone OEM Number: W01-M58-6374 / WO1-M58-6374
Firestone OEM Number: W01 M58 6374 / WO1 M58 6374
Firestone OEM Number: W01M586374 / WO1M586374
Contitech OEM Number: FS200-10
Contitech OEM Number: FS 200-10
Contitech OEM Number: FS200-10 CI
Contitech OEM Number: FS 200-10 CI
Phoenix OEM Number: SP1B12
Phoenix OEM Number: SP 1B 12
Dunlop (FR) OEM Number: 9''1/4X1 S09101
Bosch OEM Number: 822419004
Festo OEM Number: EB-250-85
Norgren OEM Number: PM/31091(8 1/4X1)
Purchase Order Data
| Type | Order No. |
with G3/4 air inlet
M8X1.25 Threaded Hole
A = 38.0 mm excentrical | 1B20010-G3/4-M8 |
with G1/4 air inlet
M10X1.5 Threaded Hole
A = 44.5 mm excentrical | 1B20010-G1/4-M10 |
with 1/4NPTF air inlet
3/8-16UNC Threaded Hole
A = 44.5 mm excentrical | 1B20010-1/4NPTF-3/8 |
| with 3/4NPT air inlet 3/8-16UNC Threaded Hole
A = 38.0 mm excentrical | 1B20010-3/4NPTF-3/8 |

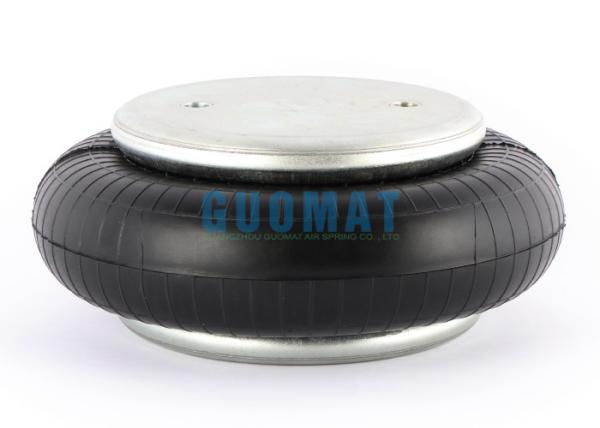

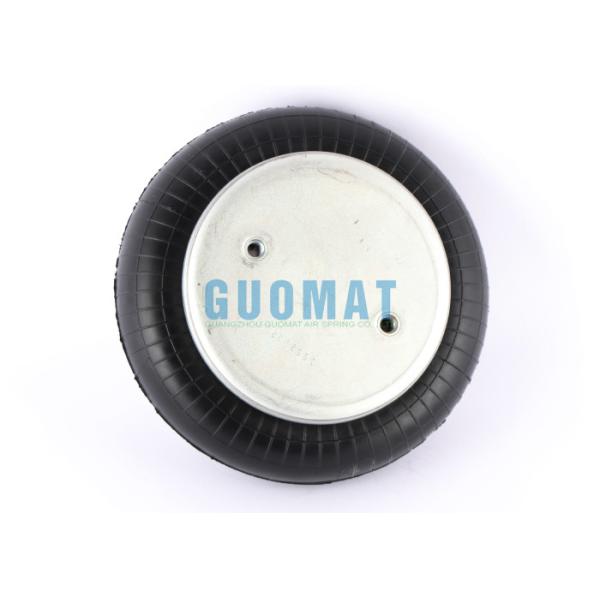

Product Image
